Widgets

This chapter describes the set of widgets available in Volto.

ButtonsWidget

ButtonsWidget is a helper component for building widgets that have a list of buttons which can be toggled, allowing the selection of a single value only. It's a minimal, extensible base widget used by other widgets. It renders a set of mutually exclusive toggle buttons, and functions similarly to a radio input.

With ButtonsWidget, you can do the following things.

• Supply a configurable list of actions, including strings or style definitions.

• Customize a per-action icon and label via the actionsInfoMap prop.

• Filter out default actions with the filterActions prop.

• Provide default and current values via default and value props.

• Pass disabled or isDisabled props to prevent interaction.

The following code example demonstrates the complete options for ButtonsWidget.

type ActionInfo = [React.ReactElement<any>, string] | [string, string];

type ActionValue = string | Record<`--${string}`, string>;

export type ButtonsWidgetProps = {
  /**
   * Unique identifier for the widget.
   */
  id: string;

  /**
   * Callback function to handle changes.
   */
  onChange: (id: string, value: ActionValue) => void;

  /**
   * List of actions available for the widget.
   */
  actions?: Array<StyleDefinition | string>;

  /**
   * Map containing additional the information (icon and i18n string) for each action.
   */
  actionsInfoMap?: Record<string, ActionInfo>;

  /**
   * List of actions to be filtered out. In case that we don't want the default ones
   * we can filter them out.
   */
  filterActions?: string[];

  /**
   * Current value of the widget.
   */
  value?: ActionValue;

  /**
   * Default value of the widget.
   */
  default?: ActionValue;

  /**
   * Indicates if the widget is disabled.
   */
  disabled?: boolean;

  /**
   * Indicates if the widget is disabled (alternative flag for compatibility reasons).
   */
  isDisabled?: boolean;
};

blockWidth

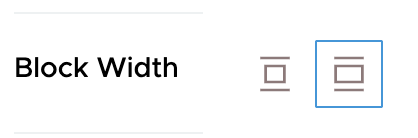

blockWidth is a widget to select a width from the defined config.blocks.widths. It's based on the ButtonsWidget, so the actions and the styles to be applied are configurable.

blockWidth

blockAlignment

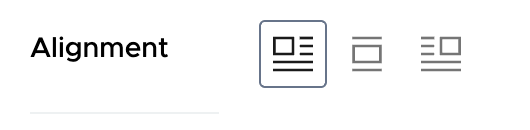

blockAlignment is a widget to select the block alignment, one of either left, right, or center. It's based on the ButtonsWidget, so the actions and the styles to be applied are configurable.

blockAlignment

size

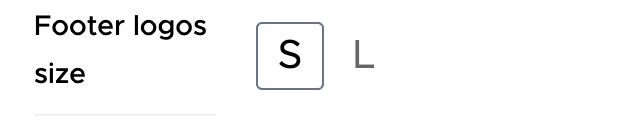

size is a widget to select the block size from a default list of values, one of either small, medium, or large. It's based on the ButtonsWidget, so the actions and the styles to be applied are configurable.

size
